Jarvis Lighting

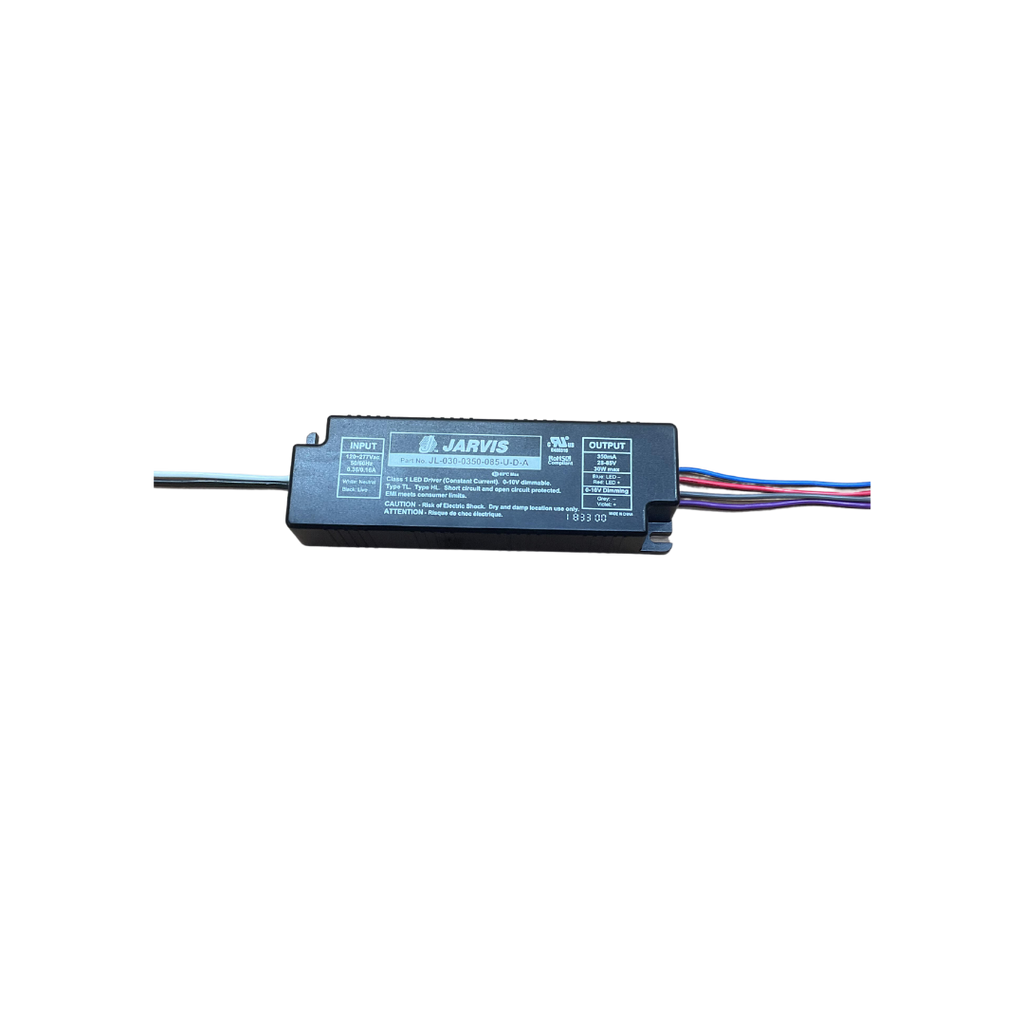

LED Driver - (Jarvis)

LED Driver - (Jarvis)

SKU:

D220

While supplies last

Regular price $32.99 USD
Regular price Sale price $32.99 USD
Sale Sold out
Shipping calculated at checkout.
Wattage
Dimming
 More payment options


The EUM-100SxxxDx series is a 100W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, tunnel and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Wattage: 30W

350mAh Constant Current

Frequency: 50/60Hz

Inrush Current :7A @230V

Load Regulation: ± 2%

Operating temperature: -40 to 60°C

Storage temperature: -40 to 85°C

Humidity: 5% to 95%

MTBF: 324,000 hours at 40°C ambient (~70°C Case temp)
